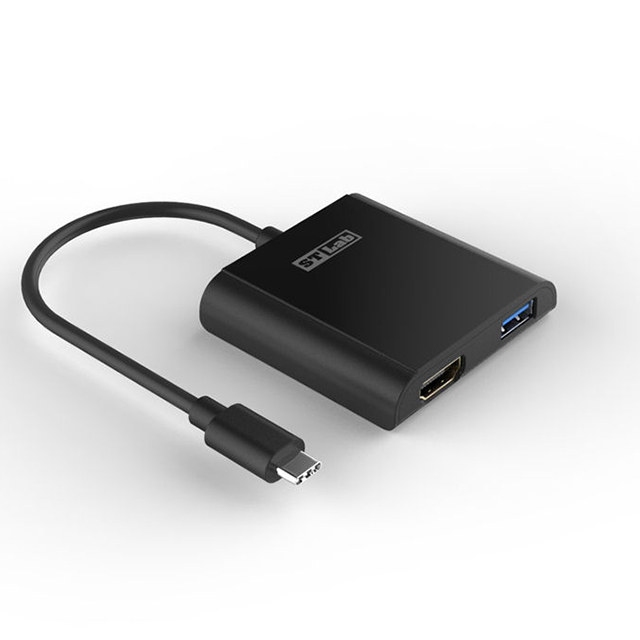

U-1550 USB Type-C to HDMI™ Adapter w/PD
Get a Quote ✎
2016/12/26
- 1x USB 5Gbps Type-A Port
- 1x HDMI™ 3840x2160 @30Hz Port
- 1x USB Type-C PD pass-through Port
- Ordering Code: U-1550
- Part No: U3-C44-DS10-11-00012
- Solution: VL100Q4+VL210+CH7525
Connect your Macbook or tablet to your HDMI™ display through your USB Type-C (DP) port using this adapter. Doesn't require any extra drivers, just plug-and-play. Requires DisplayPort alternate Mode capability.
Features
- Works with USB Type-C enabled smartphone, tablet or computer
- Compatible with the new 2015Macbook, and Chromebook Pixel
- Support upstream charging of MacBook and ChromeBook
- Support HDMI™2.0 enabled 4K UHD Monitor or TV
- Supports resolution up to 3840x2160@30Hz
- 1x USB 3.0 Type-A port for data
- 1x USB Type-C PD for charging
- Require Type-C DisplayPort Alt Mode
| Ordering Code | U-1550 |
|---|---|
| Description | USB Type-C to HDMI™ Adapter with PD |
| Solution | VL100Q4+VL210+CH7525 |
| Bus Type | USB 5Gbps |
| OS Driver Support | OS independent with no drivers required Requires DisplayPort Alternate Mode capability |
| Connectors | 1x HDMI™ port 1x USB 5Gbps Type-A port 1x USB Type-C PD port |
| Resolution | 3840x2160 @30Hz |
| Power Delivery | PD pass-through |
| Operating Temperature | 0℃ – 45℃ |
| Storage Temperature | -10℃ – 50℃ |
| EMC Standards | CE, FCC |
| Dimensions | 69L x 58W x 15H mm | Cable 76mm |
| Package content | 1x USB Type-C to HDMI™ Adapter with PD 1x User Manual |
| Packing Information | Retail Box Packing 40 pcs/Carton Measurment: 40L x 36W x 31H cm G.W: 4.2 Kg ; N.W: 3.6 Kg |
Manual :
U-1550 User Manual
↧ DownloadDriver :
No Driver Required
