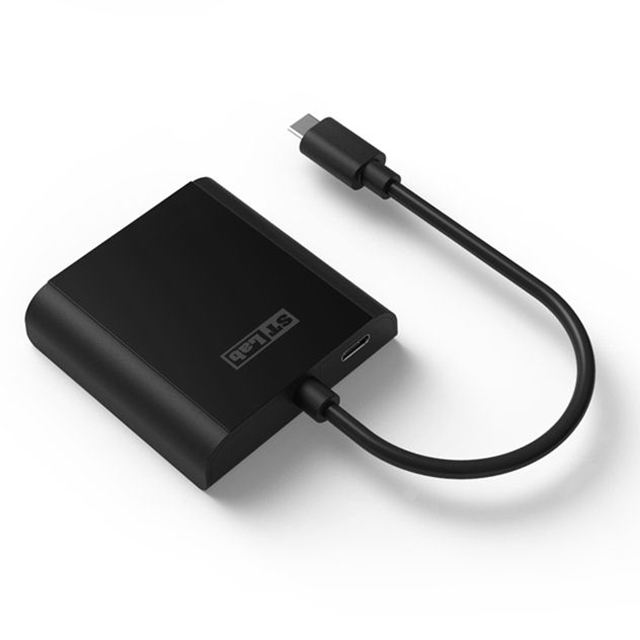

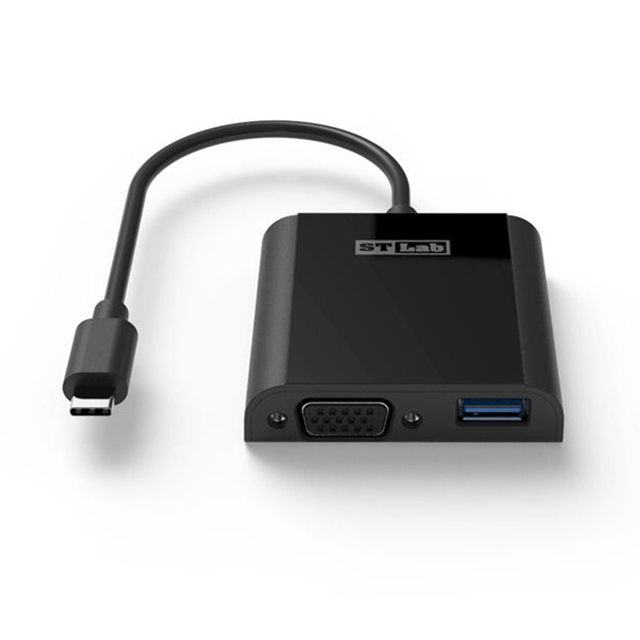

U-1540 USB Type-C to VGA Mini Docking Station w/PDEOL
Get a Quote ✎
2016/12/26
- 1x USB 5Gbps Type-A Port
- 1x VGA 2048x1536 @50Hz Port
- 1x USB Type-C PD pass-through Port
- Ordering Code: U-1540
- Part No: U3-C45-DS10-11-00012
- Solution: VL100Q4+VL210+PTN3355
Connect your Macbook or tablet to your VGA display through your USB Type-C (DP) port using this adapter. Doesn‘’t require any extra drivers, just plug-and-play. Requires DisplayPort alternate Mode capability.
Features
- Works with USB Type-C enabled smartphone, tablet or computer
- Compatible with the new 2015 Macbook, and Chromebook Pixel
- Support upstream charging of MacBook and ChromeBook
- Supports resolution up to 2048x1536@50Hz
- Complies with the VESA DisplayPort Alternate Mode on USB Type-C Connector” standard
- 1x USB 3.0 Type-A port for data
- 1x USB Type-C PD for charging
- Require Type-C DisplayPort Alt Mode
| Ordering Code | U-1540 |
|---|---|
| Description | USB Type-C to VGA Mini Docking Station with PD |
| Solution | VL100Q4+VL210+PTN3355 |
| Bus Type | USB 5Gbps |
| OS Driver Support | OS independent with no drivers required Requires DisplayPort Alternate Mode capability |
| Connectors | 1x VGA port 1x USB 5Gbps Type-A port 1x USB Type-C PD port |
| Resolution | 2048x1536 @50Hz |
| Power Delivery | PD pass-through |
| Operating Temperature | 0℃ – 45℃ |
| Storage Temperature | -10℃ – 50℃ |
| EMC Standards | CE, FCC |
| Dimensions | N/A |
| Package content | 1x USB Type-C to VGA Mini Docking Station with PD 1x User Manual |
| Packing Information | N/A |
Manual :
U-1540 User Manual
↧ DownloadDriver :
No Driver Required
