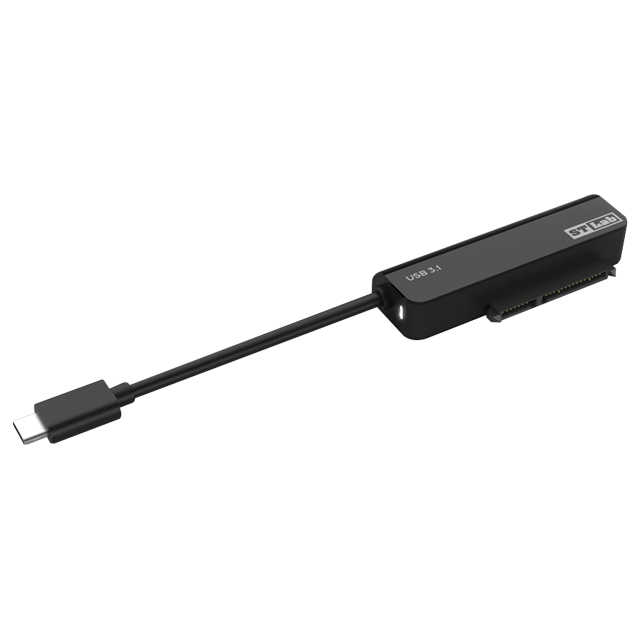

U-1460 USB 5Gbps Type-C to 2.5’’ SATA 6G AdapterEOL
Get a Quote ✎
2016/02/24
- 2.5" SATA 6G
- Bus Type USB 5Gbps
- Ordering Code: U-1460
- Part No: U3-A37-DF50-11-00012
- Solution: ASM1153E
The USB 3.1 Gen1 Type-C to 2.5' SATA 6G Adapter only works with 2.5 in.HDD and SSD, because 3.5 in.HDDs and optical drives require 12V of power and the adapter only provides 5V of power.
Features:
- Expand the connectivity of your USB-C enabled computer using the latest USB 3.1 Gen 1 technology
- Compliant with USB 3.0 Specification Revision 1.0
- Compliant with USB Specifications Revision 2.0
- Support USB Super-Speed, High-Speed and Full-Speed Operation
- Support USB Mass Storage Class, Bulk-Only Transport Specification Revision 1.3
- Support USB Attached SCSI Protocol Specification Revision 1.0
- Compliant with Serial ATA Specification Revision 3.0
- Bus bandwidth of Serial ATA up to 6Gbps
- Supports SATA 2.5'' hard drives or SSD
- LED to indicate drive power and activity
| Ordering Code | U-1460 |
|---|---|
| Description | USB 5Gbps Type-C to 2.5’’ SATA 6G Adapter |
| Solution | ASM1153E |
| Bus Type | USB 5Gbps |
| OS Driver Support | Windows 7/8/8.1/10 (32/64 bit) |
| Data Rates | 5Gbps |
| Connectors | SATA III USB 5Gbps Type-C Upstream Port |
| Operating Temperature | 0℃ – 40℃ |
| Storage Temperature | 0℃ – 45℃ |
| EMC Standards | CE, FCC |
| Dimension | N/A |
| Package Contents | 1x USB 5Gbps Type-C to 2.5’’ SATA 6G Adapter 1x User Manual |
| Packing Information | Retail Box Packing 40 pcs/Carton Measurment: 44L x 20W x 19H cm G.W: 2.8 Kg ; N.W: 2.4 Kg |
