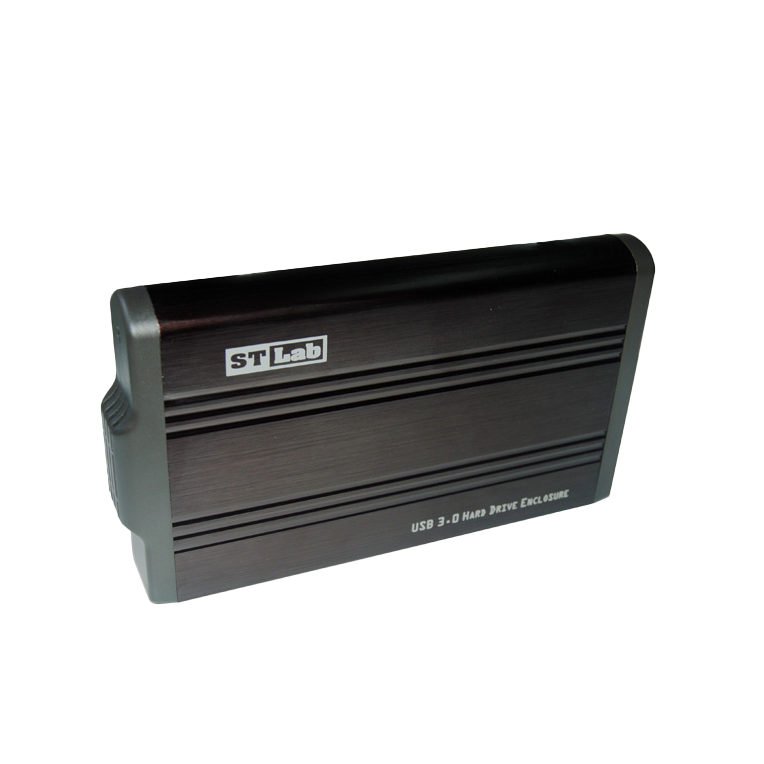

S-340 USB 3.0 3.5" SATA 6G Enclosure
Get a Quote ✎- SATA 6G
- Bus Type USB 3.0 5Gbps
- Ordering Code: S-340
- Part No: U3-V21-D811-11-00012
- Solution: VL711
Designed to expand external storage capabilities for backup and data migration across enterprise and workstation environments, the S-340 USB 3.0 3.5" SATA 6G Enclosure delivers fast, reliable file transfer performance. Powered by the high-performance VIA Labs VL711 chipset, this desktop enclosure features a SuperSpeed USB 3.0 host interface supporting throughput speeds up to 5Gbps. It offers comprehensive backward compatibility across SATA 6.0Gbps, 3.0Gbps, and 1.5Gbps protocols, ensuring seamless integration with standard 3.5-inch SATA hard disk drives. Enhanced with UASP protocol support to optimize queue management and maximize bandwidth utilization during sustained read/write operations, the unit also integrates a dedicated LED activity indicator to provide real-time visual monitoring of drive status during heavy storage tasks.
Features
- Connect any SATA storage to any USB port
- Supports SuperSpeed USB 3.0 data rate up to 5Gb/s
- Compliant to Universal Serial Bus 3.0 Specification, Revision 1.0
- Compliant to Universal Serial Bus Specification, Revision 2.0
- Supports SATA speed of 6.0Gbps, 3.0Gbps and 1.5Gbps
- Compliant with Serial ATA Specification, Revision 3.1
- Support for UASP (USB attached SCSI protocol)
- Supports SATA 3.5'' hard drives
- LED indicator for SATA activity
- Plug and Play, no driver installation
| Ordering Code | S-340 |
|---|---|
| Description | USB 3.0 3.5" SATA 6G Enclosure |
| Solution | VL711 |
| Standard compliance | SATA III 6G USB 3.0 5Gbps |
| OS Driver Support | Windows XP/Vista/7/8/8.1/10 (32/64 bit) |
| Connectors | 1x USB 5Gbps Type-B Upstream Port |
| Data Rates | 5Gbps |
| Data Rates | 0℃ – 35℃ |
| Storage Temperature | -10℃ – 70℃ |
| EMC Standards | CE, FCC |
| Dimensions | N/A |
| Package Contents | 1x USB 3.0 3.5" SATA 6G Enclosure 1x USB 3.0 cable 1x User Manual 1x Power Adapter |
| Packing Information | Retail Box Packing 20 pcs/Carton Measurment: 42.5L x 30.5W x 26.5H cm G.W: 4 Kg ; N.W: 3.5 Kg |
