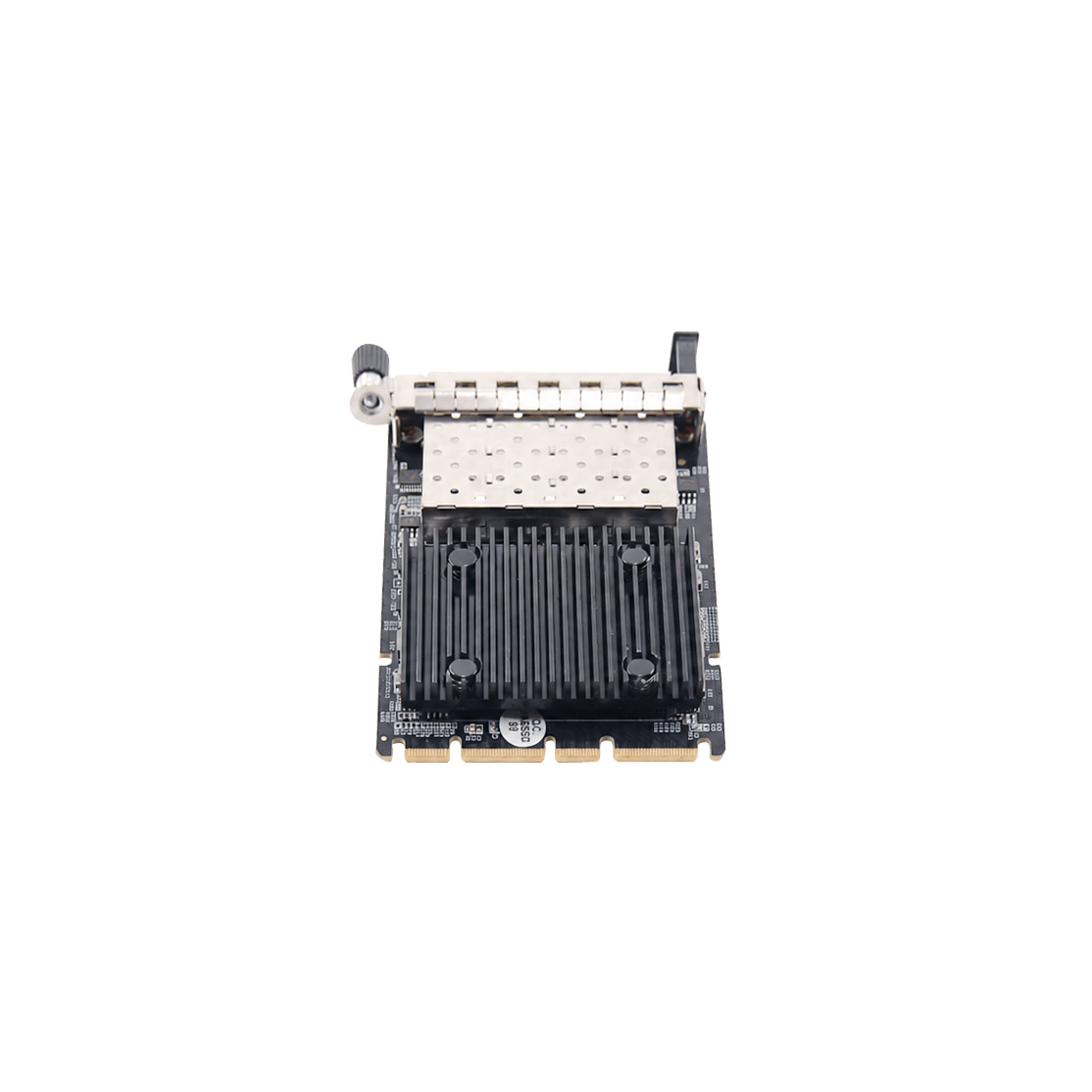

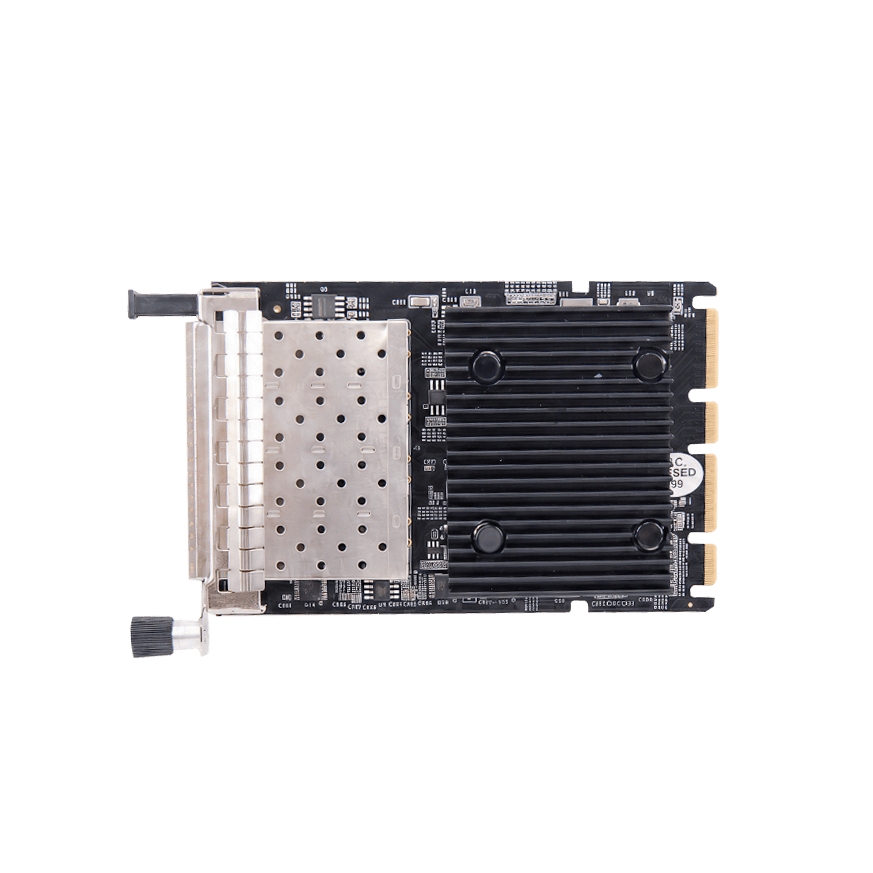

N-910 Intel 4-Port 25G SFP28 OCP 3.0 Network Adapter

Get a Quote ✎

2023/10/23

4x 25GbE SFP28 Ports
OCP 3.0 SFF Form Factor
PCIe 4.0 x16 Host Interface

Ordering Code: N-910
Part No: NE-D31-1420-00-00012
Solution: Intel E810-CAM1

This 4-Port 25G SFP28 OCP 3.0 Network Adapter is a flexible and scalable 25GbE solution providing 4x SFP28 ports. Based on Intel E810- CAM1 network controller with performance-enhancing features and power management technologies, this adapter provides a quality networking choice for data centers while reducing CPU utilization and power consumption. With the added NC-SI feature, this adapter can also function as a secure networking port for server remote management.

Features

OCP 3.0 SFF Form Factor
Four 25GbE with SFP28
Intel E810-CAM1 Controller
PCIe Gen4 x16 host interface
Compliant with OCP NIC 3.0 specification
Supports 4C+ connector
Supports OCP 3.0 scan chain, FRU NVM and NC-SI
OCP 3.0 SFF form factor with Pull Tab (Internal Lock option by demand)
Supports 25GBASE-SR/LR, AOC and DAC modules
Supports UEFI preboot

Ordering Code	N-910
Description	Intel 4-Port 25G SFP28 OCP 3.0 Network Adapter
Solution	Intel E810-CAM1
Form Factor	OCP 3.0 SFF
Bus Width	PCIe 4.0 x16
OS Driver Support	Windows10/11 WindowsServer2016/2019/2022 Linux kernel 4.x or later VMware ESXi 7.0 or above FreeBSD
Connectors	4x 25GbE SFP28 Ports
Data Rates	25Gb/10Gb/1Gb Ethernet
Operating Temperature	0℃ – 55℃
Storage Temperature	-40℃ – 70℃
EMC Standards	CE, FCC
Dimensions	131.9L x 84.6W x 15.1H mm
Package Contents	1x Intel 4-Port 25G SFP28 OCP 3.0 Network Adapter 1x User Manual
Packing Information	Retail Box Packing 20 pcs/Carton Measurment: 36L x 30W x 23H cm

N-910 Intel 4-Port 25G SFP28 OCP 3.0 Network Adapter

Datasheet :

Manual :

Driver :

N-910 Intel 4-Port 25G SFP28 OCP 3.0 Network Adapter

Datasheet :

Manual :

Driver :

Related Products

N-1250 Broadcom 4-Port 25G SFP28 OCP 3.0 Network Adapter

N-1000 Intel 2-Port 25G SFP28 OCP 3.0 Network Adapter

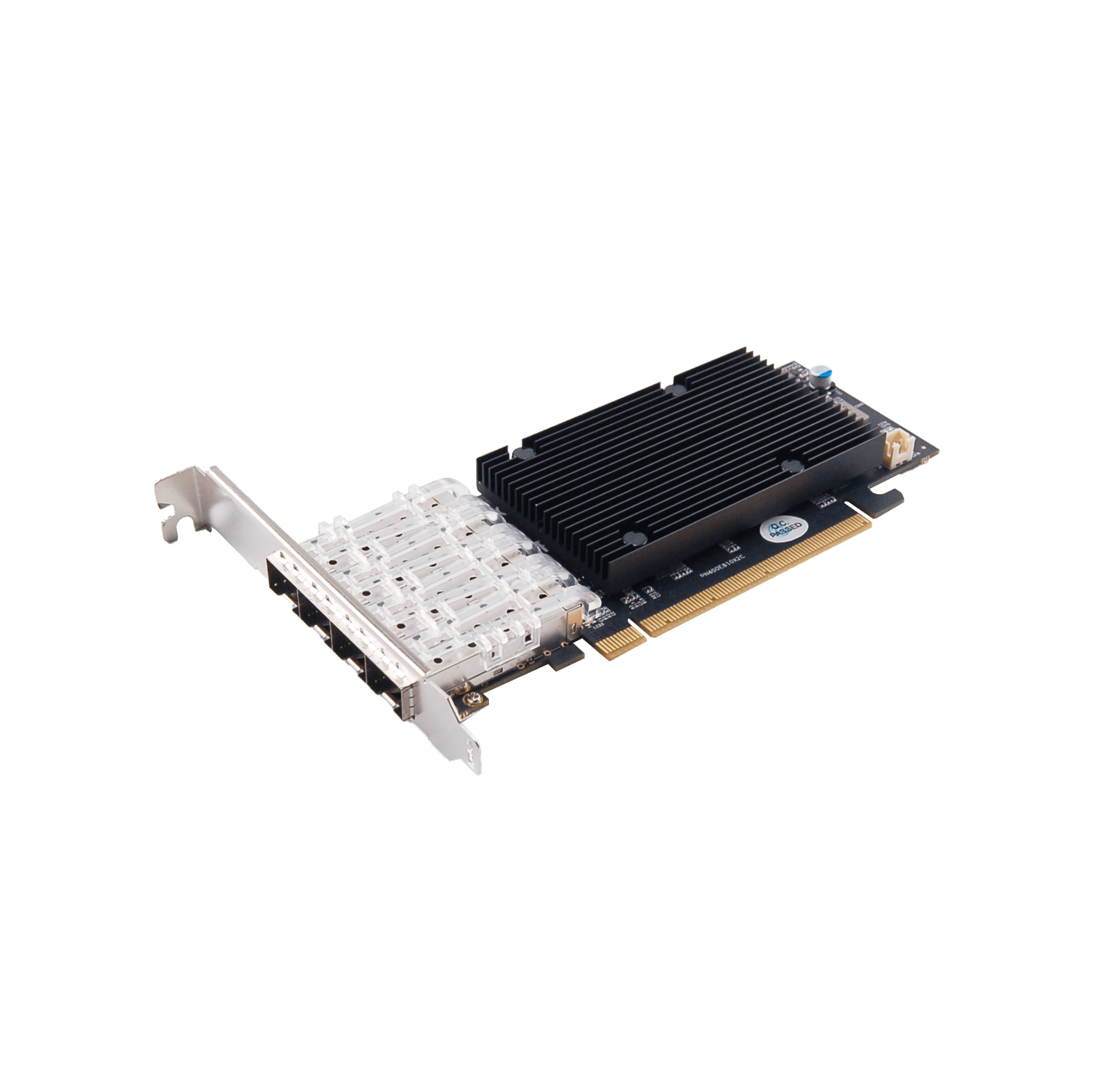

N-750 Intel PCIe 4-Port 25G SFP28 Network Adapter
