Home‹ Products‹ Networking‹N-611
N-611

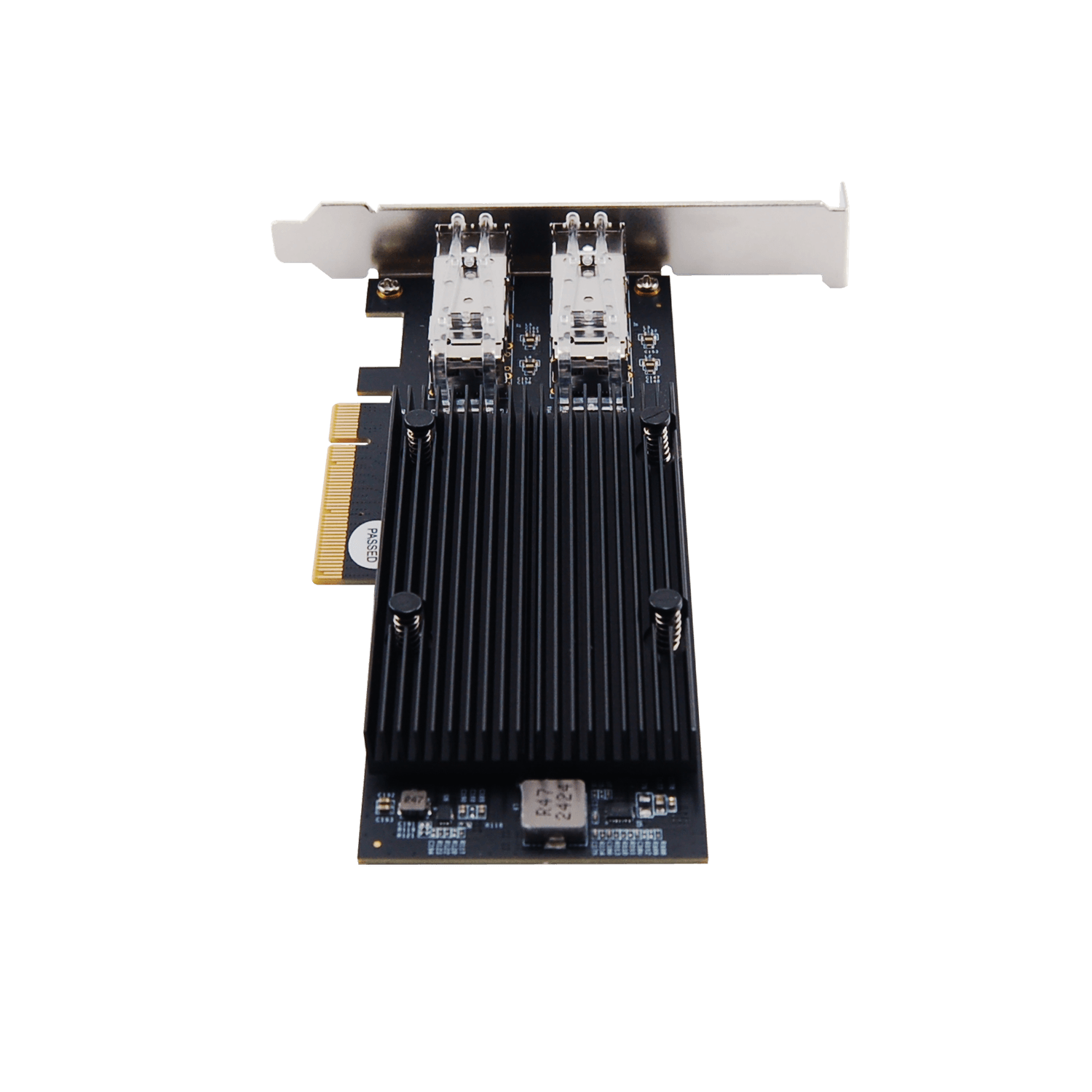

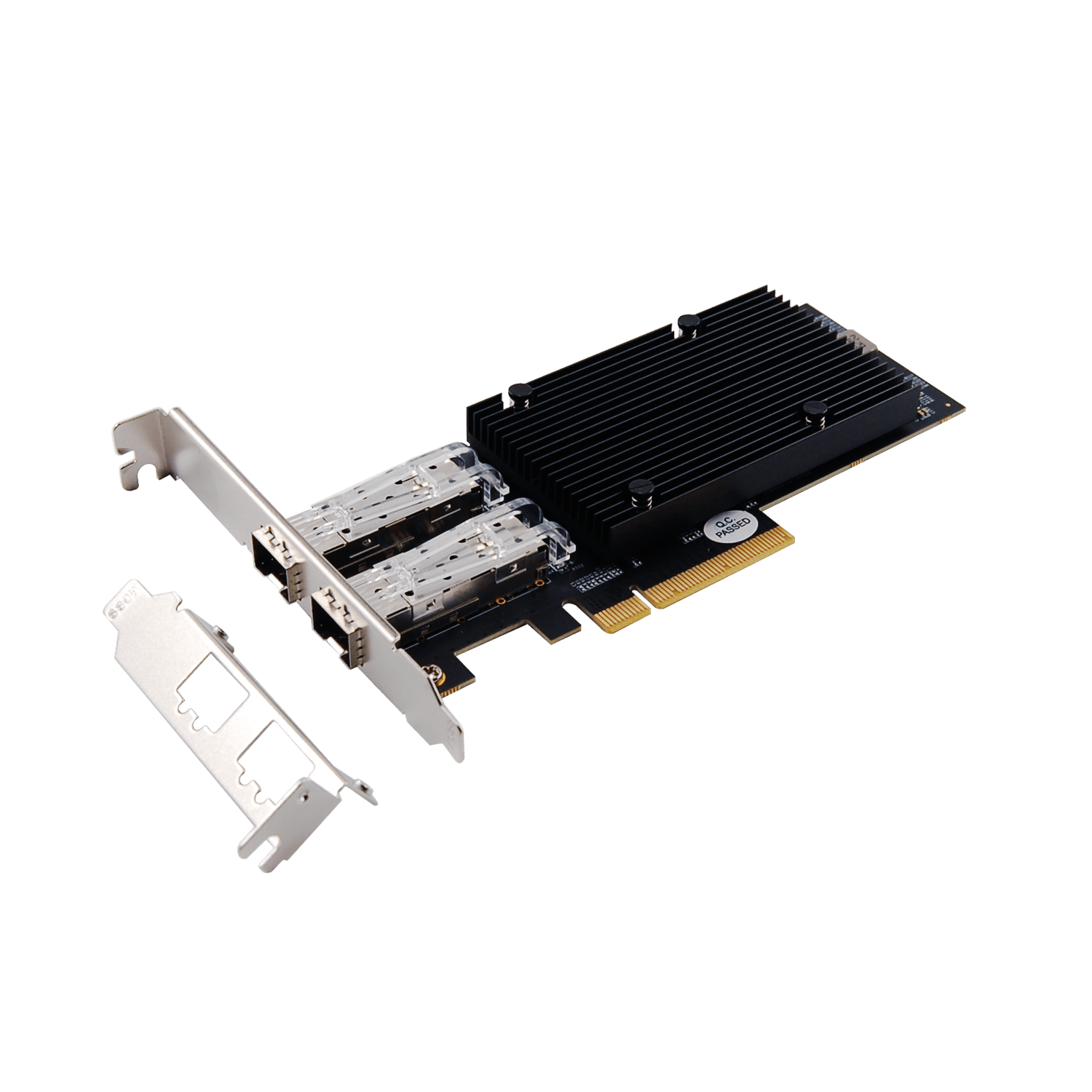

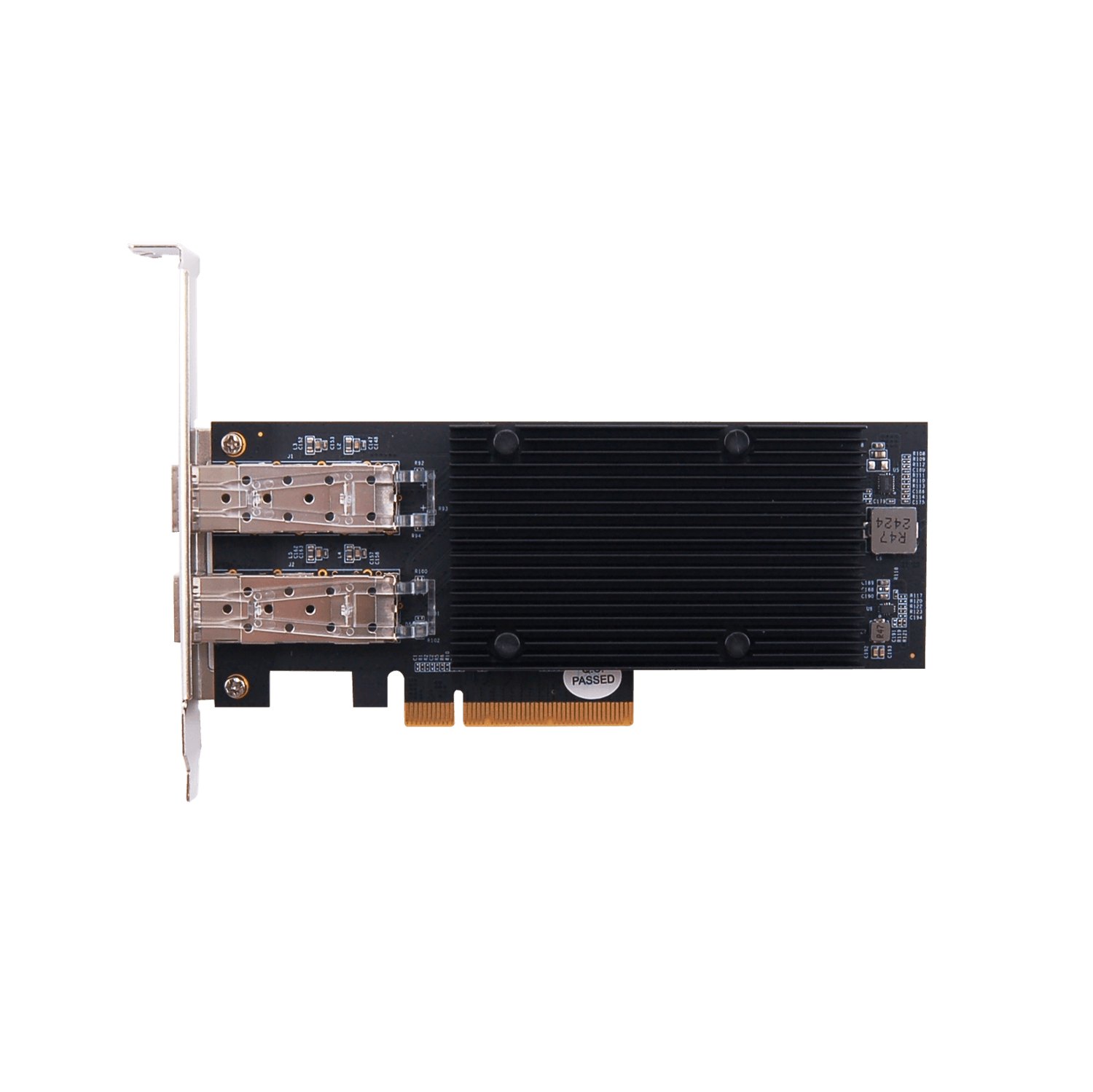

N-611 Intel PCIe 2-Port 25G SFP28 Network Adapter

Get a Quote ✎
2023/08/31
  • 2x 25GbE SFP28 Ports
  • PCIe 4.0 x8 Form Factor
  • Ordering Code: N-611
  • Part No: NE-D34-1210-00-00012
  • Solution: Intel E810-XXVAM2

This high performance PCIe 2-Port SFP28 Network Adapter provides two SFP28 ports for network connection of data rate up to 25Gbps. By using Intel's top of the class E810 Ethernet controller, the adapter is designed to optimize high-performance system workloads for Cloud and Communications.

Features

  • PCIe Gen4 x8 form factor
  • Supports low-profile systems
  • Provides 2 x SFP28 ports for multiple high-speed connections
  • Various performance optimization technologies: ADQ, DDP, DPDK
  • Supports 25Gbps SFP28 and 10Gbps SFP + optics, AOC and DAC modules
  • Supports IEEE1588 PTP v2 Precision Time Protocol

Verified transceiver list

  • XP-85B1-02D 25G SFP28 MM LC 850nm 100m - Amphenol
  • SR SFP28-25GSR-85 25G SFP28 850nm 100M
  • FiberStore SFP28-25GSR-85 25G SFP28 850nm 100M - FS(FiberStore)
  • LS-MM8525-S1C SFP28 25G 850nn 100M LC DDM - Link-PP
Ordering CodeN-611
DescriptionIntel PCIe 2-Port 25G SFP28 Network Adapter
SolutionIntel E810-XXVAM2
Form FactorPCIe 4.0 x8
Bus Widthx8 lane PCI Express
OS Driver SupportWindows 11 Windows Server 2016/2019/2022 Linux 3.16 or later VMware ESXi 7.0 or above FreeBSD
Connectors2x 25GbE SFP28 Ports
Data Rates25Gb/10Gb/1Gb Ethernet
Support Low-Profile BracketYes
Operating Temperature0℃ – 55℃
Storage Temperature-20℃ – 70℃
EMC StandardsCE, FCC
Dimensions175.3L x 120.9W x 21.6H mm
Package Contents1x Intel PCIe 2-Port 25G SFP28 Network Adapter 1x Low-Profile Bracket 1x User Manual
Packing InformationRetail Box Packing 40 pcs/Carton Measurment: 60L x 48W x 34H cm G.W: 11 Kg ; N.W: 10 Kg

Datasheet :

N-611-Product-Brief.pdf 2025/02/11
↧ Download

Manual :

N-611 User Manual 2024/04/26
↧ Download

Driver :

Intel_25GbE_ESXi.zip 2026/08/20
↧ Download
Intel_25GbE_FreeBSD.zip 2026/08/20
↧ Download
Intel_25GbE_Linux.zip 2026/08/20
↧ Download
Intel_25GbE_Windows.zip 2026/08/20
↧ Download
