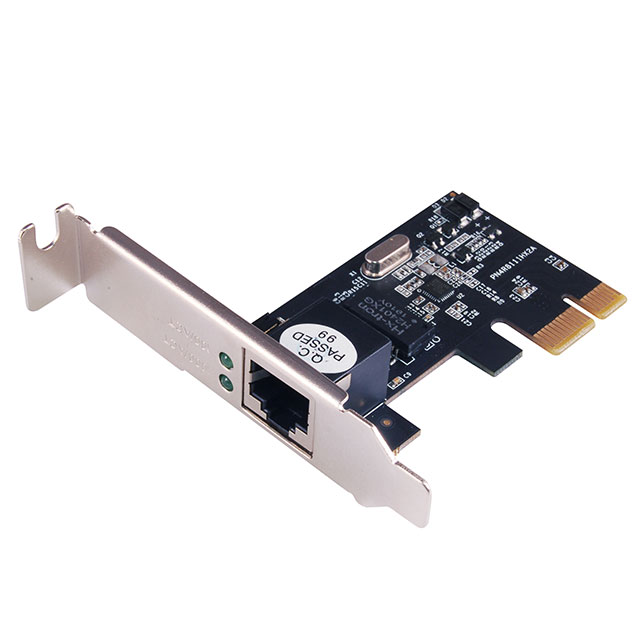

N-314 PCIe 1-Port Gigabit Ethernet Adapter
Get a Quote ✎- 1x 1GbE RJ45 Port
- Wake on Lan
- PCIe 1.1 x1 Form Factor
- Ordering Code: N-314
- Part No: NE-R24-2110-00-00012
- Solution: Realtek RTL8111H
The N-314 PCIe 1-Port Gigabit Network Adapter provides reliable, high-speed wired connectivity for system integrators, industrial PC deployment, and enterprise infrastructure. Powered by the proven Realtek RTL8111H chipset, this expansion card utilizes a PCIe 1.1 x1 host bus interface to deliver full gigabit Ethernet performance through a single RJ45 port. Fully compliant with IEEE 802.3, 802.3u, and 802.3ab standards, it features support for Wake-On-LAN, IEEE 802.1Q VLAN tagging, and up to 9K jumbo frames to optimize network efficiency and data throughput. Integrated LED indicators provide real-time status for link connection and activity. It serves as an ideal solution for adding gigabit Ethernet capabilities to office PCs or implementing network isolation and teaming in industrial computing environments.
Features
- Single-lane (or x1) PCI Express throughput supports rate of 2.5Gbps
- Designed to meet PCI Express Specification Revision 1.1a
- Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- 10/100/1000M data auto-negotiation
- LEDs indicate the status of data transmission
- Support Wake on Lan (WOL) power management (optional)
- Feature full duplex mode that doubles the network connections speed
| Ordering Code | N-314 |
|---|---|
| Description | PCIe 1-Port Gigabit Ethernet Adapter |
| Solution | Realtek RTL8111H |
| Form Factor | PCIe 1.1 x1 |
| Bus Width | x1 lane PCI Express |
| OS Driver Support | Windows XP/Vista/7/8/8.1/10/11 Windows Sever 2003/2008/2008 R2/2012/2022/2025 Linux kernel 2.4.20 or later |
| Connectors | 1x 1GbE RJ45 Port |
| Data Rates | 1Gbps/100Mbps/10Mbps Ethernet |
| Support Low-Profile Bracket | Yes |
| Operating Temperature | 0°C – 55°C |
| Storage Temperature | -40°C – 70°C |
| EMC Standards | CE, FCC |
| Dimensions | 78.6L x 120.9W x 21.6H mm |

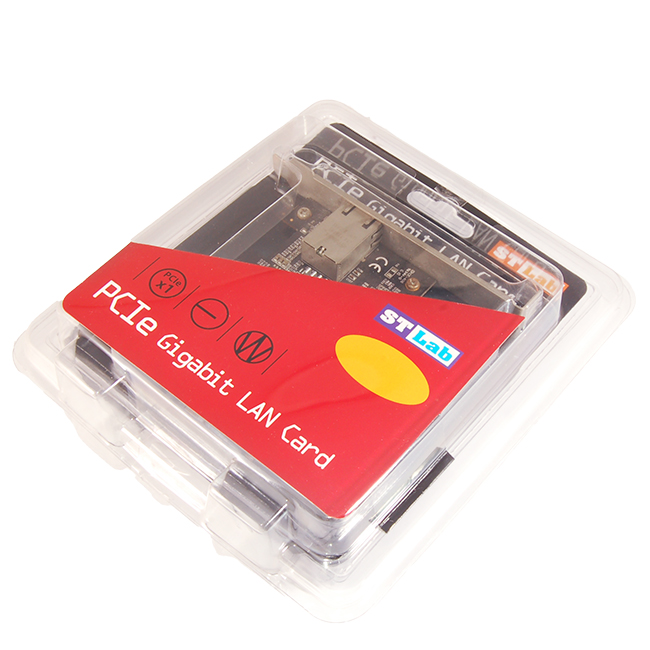

| Package Contents | 1x PCIe 1-Port Gigabit Ethernet Adapter 1x User Manual |
| Packing Information | Retail Box Packing 60 pcs/Carton Measurment: 54L x 52W x 40H cm G.W: 9.8 Kg ; N.W: 9 Kg |
