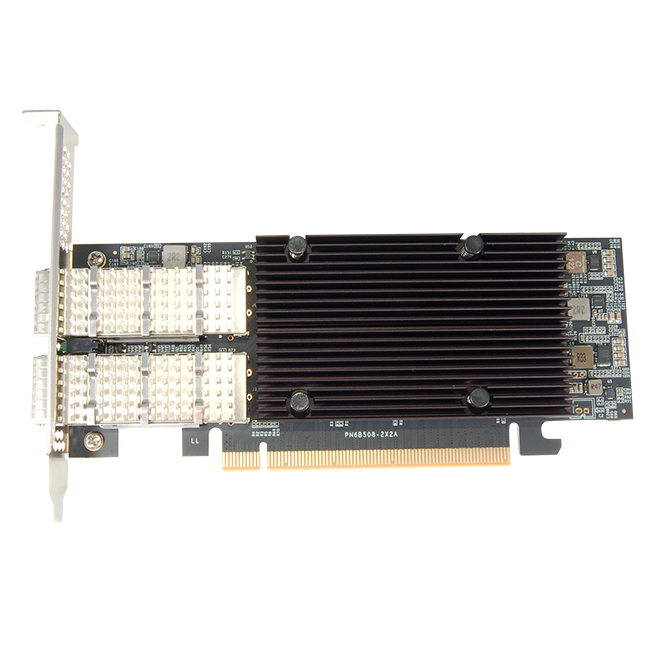

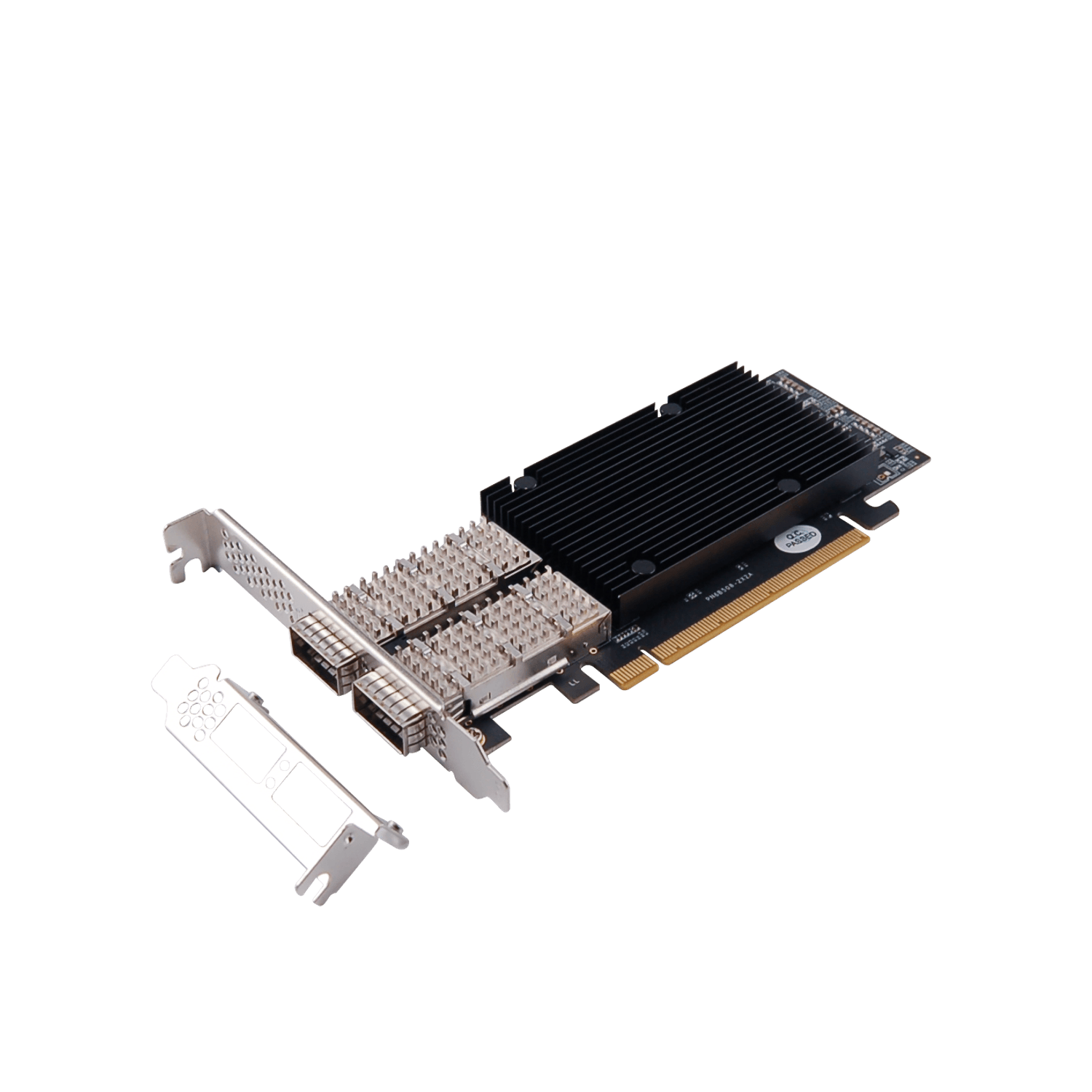

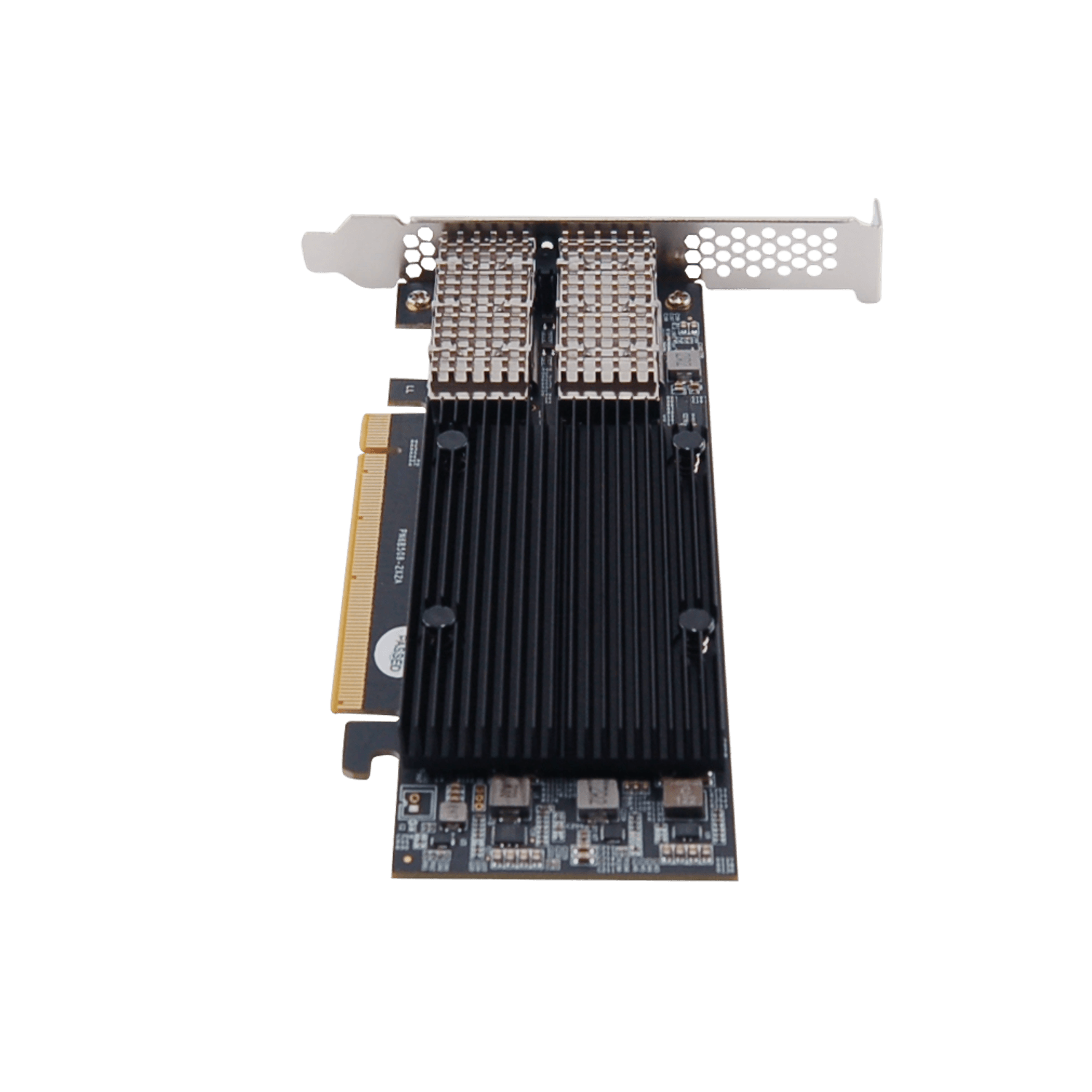

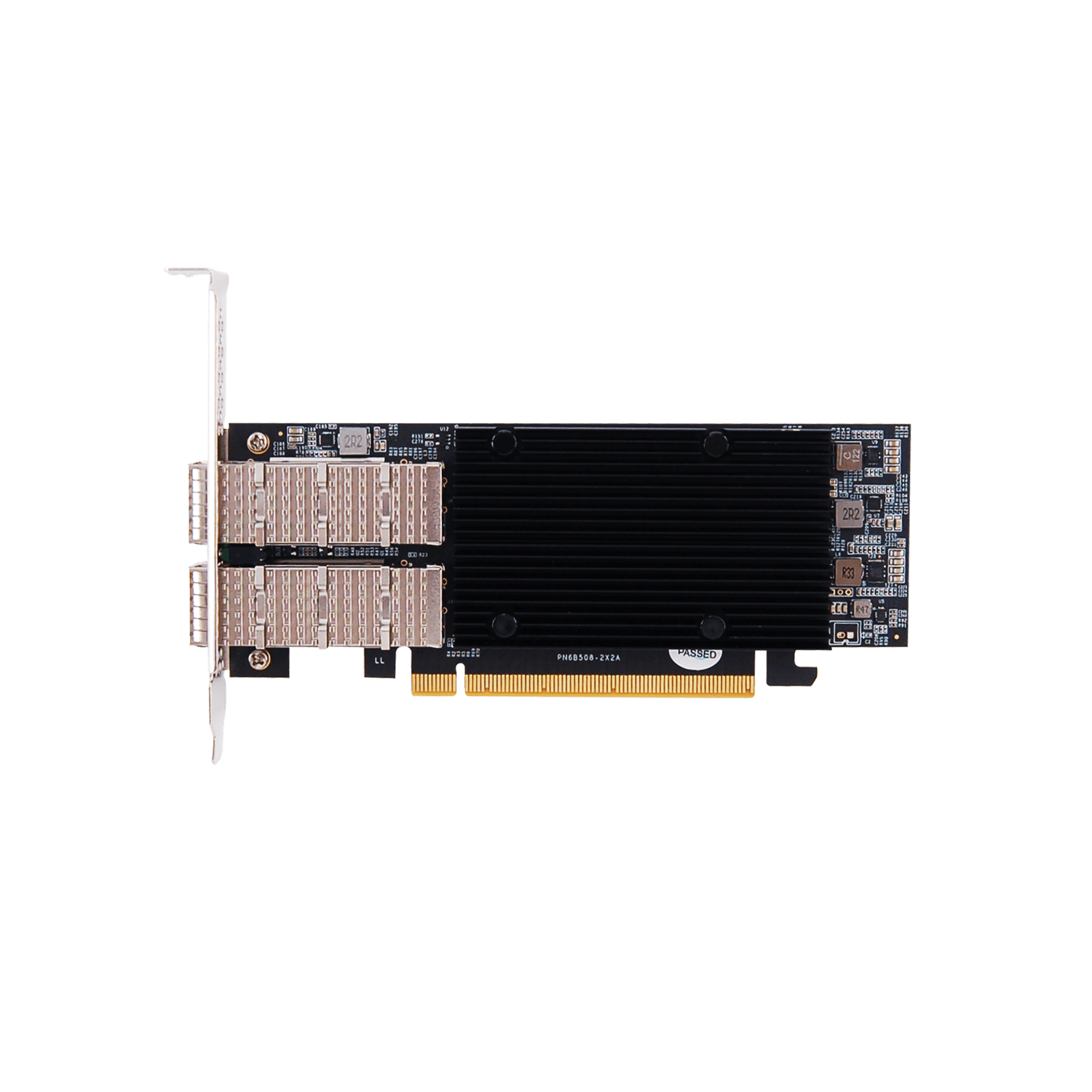

N-1200 Broadcom PCIe 2-Port 100G QSFP56 Network Adapter

The N-1200 Broadcom 2-Port 100G QSFP56 PCIe network adapter —built on Broadcom’s BCM57508 controller enables highly-scalable, feature-rich networking solutions in servers. It caters to enterprise and cloud-scale applications, including high-performance computing, telco, machine learning, storage disaggregation, and data analytics. By combining a high-bandwidth Ethernet controller with optimized hardware acceleration engines, it enhances network performance and server efficiency. Notably, features like TruFlow™ boost VM density, and on-chip tunneling protocols improve throughput while reducing CPU utilization.

Features

• PCIe Gen4 x16 form factor
• Supports standard and low-profile systems
• Provides one QSFP56 ports for multiple high-speed connections
• Supports both RDMA iWARP and RoCEv2 for high-speed, low- latency connectivity to storage targets
• Standards-compliant 100/50/40/25/10G dual-port QSFP56 PCIe network adapter with line-rate, full-duplex throughput
• NIC partitioning supporting 16 physical functions (PFs)
• TruFlow™ engine for intelligent flow processing to increase server VM density and accelerate vSwitch processing
• Industry's most secure PCIe network adapter solution leveraging Broadcom's BroadSAFE® technology to provide
• unparalleled platform security via Silicon Root of Trust
• New end-to-end congestion avoidance and management to anticipate and eliminate congestion before it happens
• Support for advanced networking technologies including RoCE, SDN, NFV and virtualization
• TruManage™ enhances server manageability and security for data center deployments
• Multi-host allows multiple compute and storage nodes to seamlessly connect to a single Ethernet adapter for cloud-scale networking and storage applications
