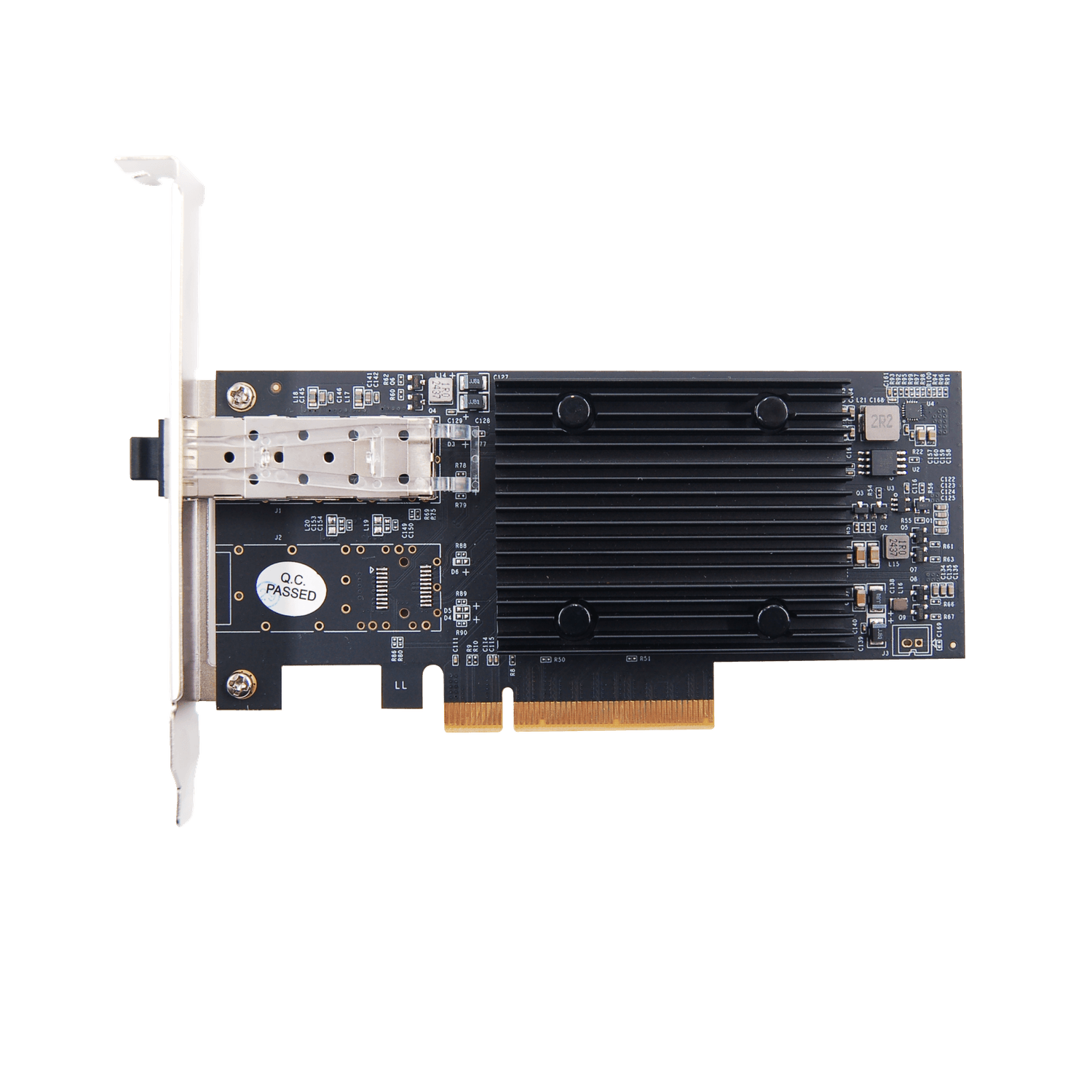

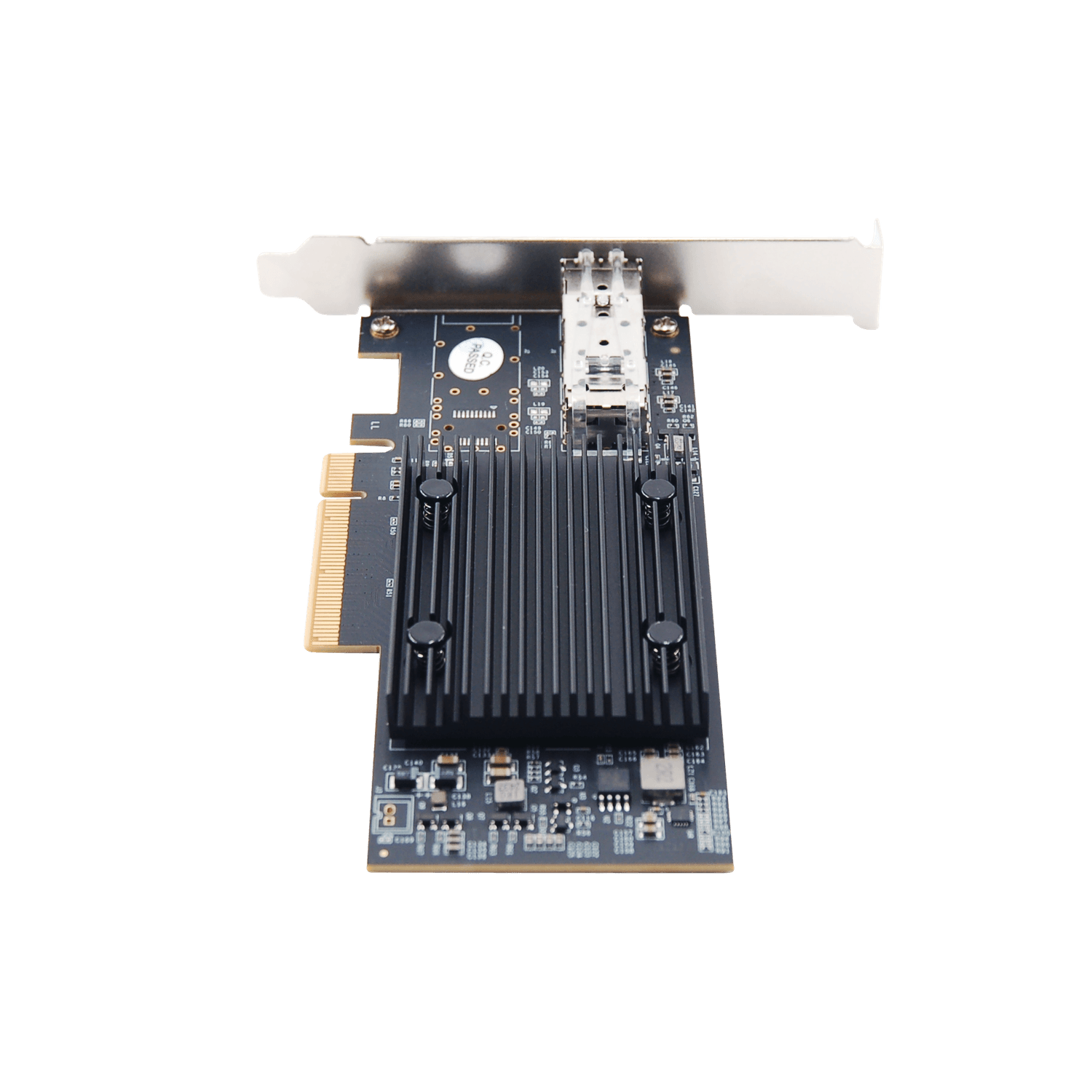

N-1090 Broadcom PCIe 1-Port 25G SFP28 Network Adapter
Get a Quote ✎- 25GbE SFP28 Port
- PCIe 3.0 x8 Form Factor
- Ordering Code: N-1090
- Part No: NE-Z13-1110-00-00012
- Solution: Broadcom 57412
N-1090 Broadcom PCIe 1-Port 25G SFP28 Network Adapter leverages market-leading hardware acceleration technologies that feature high throughput and advanced flow processing to meet the performance and service demands of mega-scale data center networks. Features such as TruFlow™ increase VM density up to 50 percent, freeing more CPU cycles for additional virtual machines. On-chip tunneling protocol processing for Geneve, VXLAN, and NVGRE provides up to a 5X throughput increase while lowering CPU utilization up to 90 percent compared to software-only solutions. N-1090 also supports advanced networking technologies such as RoCE, SDN and NFV, to facilitate the management of data networks and to enable service provider solutions
Features
- PCIe Gen3 x8 host interface
- Up to 9KB jumbo frame
- Standards-compliant 25G Single-port SFP28 adapter with line rate, full-duplex throughput
- NIC partitioning supporting 16 physical functions (PFs)
- TruFlow™ engine for intelligent flow processing to increase server VM density and accelerate vSwitch processing
- Industry's most secure PCIe NIC adapter solution leveraging Broadcom's BroadSAFE® technology to provide unparalleled platform security via Silicon Root of Trust
- New end-to-end congestion avoidance and management to anticipate and eliminate congestion before it happens
- Support for advanced networking technologies including RoCE, SDN, NFV and virtualization
| Ordering Code | N-1090 |
|---|---|
| Description | Broadcom PCIe 1-Port 25G SFP28 Network Adapter |
| Solution | Broadcom 57412 |
| Form Factor | PCIe 3.0 x8 |
| Bus Width | x8 lane PCI Express |
| OS Driver Support | Windows10/11(64-bit) Windows Sever2022/2025 Linux kernel versions 2.6 or newer VMwareESXi 7.0 or above FreeBSD |
| Connectors | 1x 25GbE SFP28 Port |
| Data Rates | 25GbE |
| Support Low-Profile Bracket | Yes |
| Operating Temperature | 0°C – 55°C |
| Storage Temperature | -40°C – 70°C |
| EMC Standards | CE, FCC |
| Dimensions | 158.29L x 120.92W x 21.59H mm |

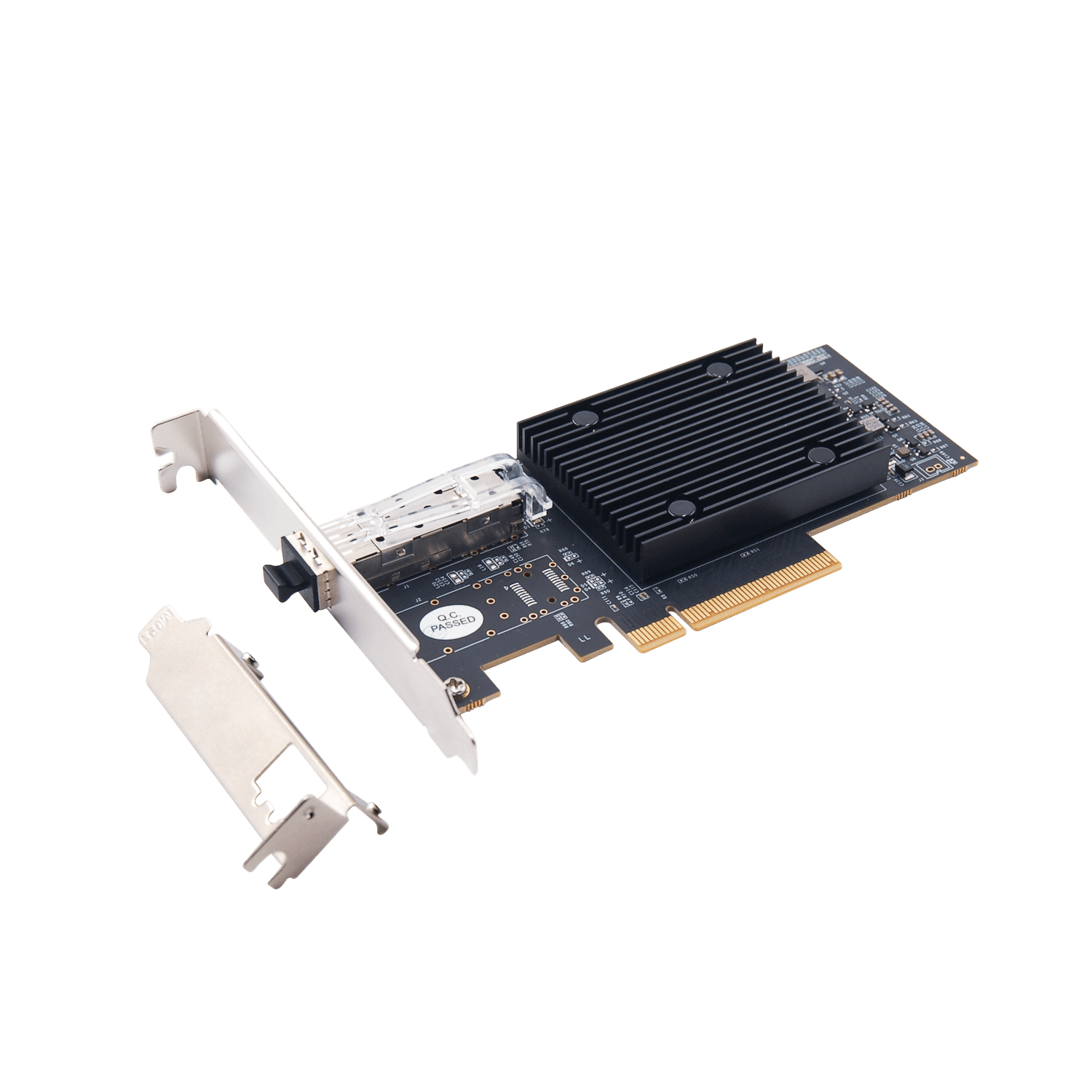

| Package content | 1x Broadcom PCIe 1-Port 25G SFP28 Network Adapter 1x Low-Profile Bracket 1x User Manual |
| Packing Information | Retail Box Packing 20 pcs/Carton Measurment: 36L x 30W x 23H cm G.W: 4.4 Kg ; N.W: 3.9 Kg |
