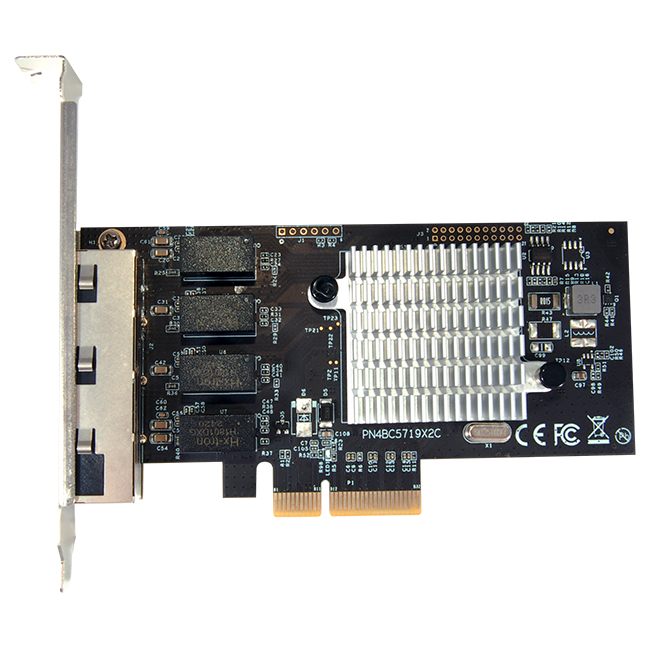

N-1060 Broadcom PCIe 4-Port 1G Network Adapter
Get a Quote ✎- 4x 1GbE RJ45 Ports
- PCIe 2.1 x4 Form Factor
- Ordering Code: N-1060
- Part No: NE-Z10-2410-00-00012
- Solution: Broadcom 5719
Designed for today's enterprise and data center environments, the N-1060 Broadcom PCIe 4-Port 1G Network Adapter is the ideal solution for multicore servers, delivering full line-ratethroughput across all ports. The adapter utilizes Broadcom's field-proven BCM5719 integrated controller device to deliver lower power consumption and Energy Efficient Ethernet (EEE), reducing IT operation costs. The N-1060 is compatible with x86 and x64 servers utilizing the PCIe v1.x and v2.x interfaces. Increasing application workloads are placing greater demands on enterprise networks, and the N-1060 Broadcom PCIe 4-Port 1G Network Adapter is the solution of choice for such environments, providing a reliable, high-performance, energy-efficient 1GbE connectivity solution.
Features
- x4 PCI Express v2.1 at 5 GT/s or 2.5 GT/s
- Quad-port 10/100/1000BASE-T Ethernet server adapter
- Energy Efficient Ethernet compliant with IEEE Std 802.3az-2010
- IEEE 802.3ap Clause 73 auto-negotiation
- Quad 10/100/1000BASE-T full-duplex/half-duplex MACs
- Virtualization support with VMware NetQueue and Microsoft VMQ
- Wake-on-LAN support
- TCP, UDP, and IP checksum offload
- Large Send Offload, TCP Segmentation Offload
- Jumbo frame support with up to 9.6 KB packet size
| Ordering Code | N-1060 |
|---|---|
| Description | Broadcom PCIe 4-Port 1G Network Adapter |
| Solution | Broadcom 5719 |
| Form Factor | PCIe 2.1 x4 |
| Bus Width | x4 lane PCI Express |
| OS Driver Support | Windows10/11(64-bit) Linux Kernel 5.8 or later |
| Connectors | 4x 1GbE RJ45 Ports |
| Data Rates | 1Gb/100Mb/10Mb Ethernet |
| Support Low-Profile Bracket | Yes |
| Operating Temperature | 0°C – 55°C |
| Storage Temperature | -40°C – 70°C |
| EMC Standards | CE, FCC |
| Dimensions | 143.3L x 120.9W x 21.6H mm |
| Package Contents | 1x Broadcom PCIe 4-Port 1G Network Adapter 1x Low-Profile Bracket 1x User Manual |
| Packing Information | Retail Box Packing 20 pcs/Carton Measurment: 36L x 30W x 23H cm G.W: 4.1 Kg ; N.W: 3.6 Kg |
